Interesting things in Unity 4.5 you probably didn't know about

Well, as you all know Unity team has recently released Unity version 4.5 which brought us (according to Unity's web site):

While 450 bugs fixed sounds amazing, shaders compilation was indeed terribly slow, I don't really care about OpenGL ES 3.0 (since I got an old iPhone 4s) and Sparse Textures is a good feature to explore on modern desktop GPUs, what I want to tell you about are those features and bug fixes buried in the massive Release Notes which you have probably missed but they are indeed very important.

In no particular order.

Hierarchy Window sorting

This change alone breaks the naming convention of millions of developers. I myself used to name the empty object with controllers $ to make sure that it's always on the top of Hierarchy Panel. Now you can just drag GameObjects up and down manually.

SelectionBase attribute

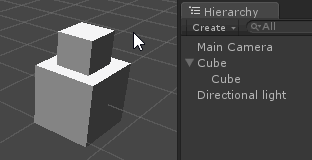

If you have an hierarchy of objects with geometry attached usually when you click one of them it gets selected.

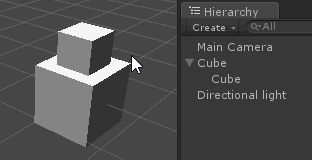

If you remember Prefabs behave differently. If you click an object in prefab's hierarchy the root of this prefab is be selected instead. And now you can manually force this behavior using SelectionBase attribute.

[SelectionBase]
public class TheBase : MonoBehaviour {}

This may be useful when you think of an hierarchy of objects as single object and don't want to control its child objects. For example you have an object and a plane inside and it's important to move this root object instead of its child plane. This feature might help you always select the right object.

DecoratorDrawers

PropertyDrawers are used to make your fields more pretty in the Editor. They are extremely easy to use. For example using just one annotation you can convert a float field into a smart range property.

[Range(0, 100)]
public float MyValue;

While PropertyDrawers modify the appearence of fields in the Editor, new DecoratorDrawers augment them with visual elements. Check out this code:

[Header("Hi there!")]
public string TheHeader = "Header!";
[Tooltip("This is THE VALUE!")]
[ContextMenuItem("Reset", "resetTheValue")]
public float TheValue = 42.0f;
[Space(50)]
public string TheString = "THE STRING";

private void resetTheValue()
{
    TheValue = 42;
}

And the animation where you can see what these annotations do.

Just a little trick to make your Editor interfaces better.

Scripts in DLLs

This is probably one of my favorites.

You see, prior to 4.5 if you had MyBaseClass : MonoBehaviour in MyBaseClass.dll and MyDerivedClass : MyBaseClass in MyDerivedClass.dll you couldn't use MyDerivedClass in your projects because Unity was unable to follow this MASSIVE inheritance chain and figure out that MyDerivedClass was a MonoBehaviour.

Thanks God this is now fixed.

Default parameters

This bug was one of those bugs stopping people from using specific language features. Now we can breath freely.

Saving to JPEG

Many developers have been asking for a function to save to JPEG. Yes we had Texture2D.EncodeToPNG for a long time, but you know...

Anyway, the new method is also terribly slow. Encoding a 2048x2048 texture:

Now we know if we have Pro license

This will be useful for fellow plugin developers. Now we have an easy way to be sure that code we are writing targets right Editor version.

Serialization

People have been asking for years for the ability to serialize structs. Now this code works and shows a list of structs:

public List list = new List();

[Serializable]
public struct MyStruct
{
    public int Value;
}

Being able to serialize arrays of AnimationCurve sometimes may be handy too.

But what really interesting is ISerializationCallbackReceiver interface. The docs say:

It seems that instead of wasting man-years on figuring out how to serialize Dictionaries they gave us an ability to manually specify what and how we want to be serialized. Example in the docs shows just that.

GameObject.GetComponentsInParent()

It's good to know that now we have this. I haven't tested it yet but it must be a lot faster than enumerating manually through the parent chain.

Debugging DirectX 11 shaders

The method described is not new but now we got a decent tutorial on how to debug dx11 shaders in Unity.

Windows Phone apps

I understand that nobody gives a fuck about WP apps but I had to develop a couple simple ones for Nokia Lumia and I'm glad that Unity is evolving and I hope that it will be able to make this platform better.

There are a lot of added features and fixed bugs for Windows Phone target and it's good to know that I helped fixing some of them:

o.O

Damn, someone has huge projects...

Nice lists

And the last one is not even in the Release Notes. It's a little Editor class hiding in UnityEditorInternal namespace. It's called ReorderableList and it makes drawing lists in custom inspectors such an easy task. If you ever tried to make a pretty inspector for a List<> or Array field in Unity you know what a massive pain it is.

Here's a demo of ReorderableList class:

This is the code from the custom inspector used:

private ReorderableList list;

list = new ReorderableList(property.serializedObject, property.FindPropertyRelative("tagList"), true, true, true, true);
list.drawHeaderCallback += rect => GUI.Label(rect, label);
list.drawElementCallback += (rect, index, active, focused) =>
{
    rect.height = 16;
    rect.y += 2;
    EditorGUI.PropertyField(rect,
        list.serializedProperty.GetArrayElementAtIndex(index),
        GUIContent.none);
};
list.DoList(position);

This is the full example: TouchManagerEditor.cs

Interesting fact: there was already practically identical list implementation called ReorderableList which I've been using from time to time.

***

These are the features I found particularly interesting while browsing through Unity 4.5 Release Notes. It's always like a treasure hunt... you  never know what you will find.

If for some reason you think that some other features/fixes deserve more attention feel free to post them in comments.

---
